Parker Fluid Control Angle Body Valves
Division’s Angle Body Valves offer a compact, versatile design that provides high flow rates for aggressive applications and corrosive fluid.
Technical Specifications
Body Material 304 SS or 316 SS
Function 2/2 NC, NO, NC(antiwater hammer), double acting (with spring)
Nominal sizes DN10-DN65, 3/8” to 2 ½”
Connections Threads- BSP,BSPT,NPT,NPTF Welded- ISO1127/4200, DIN 11850.1, DIN 11850.2, DIN 11850.3, SMS3008, ASME BPE Flanges
Max Working Pressure 16 BAR, 232 PSI

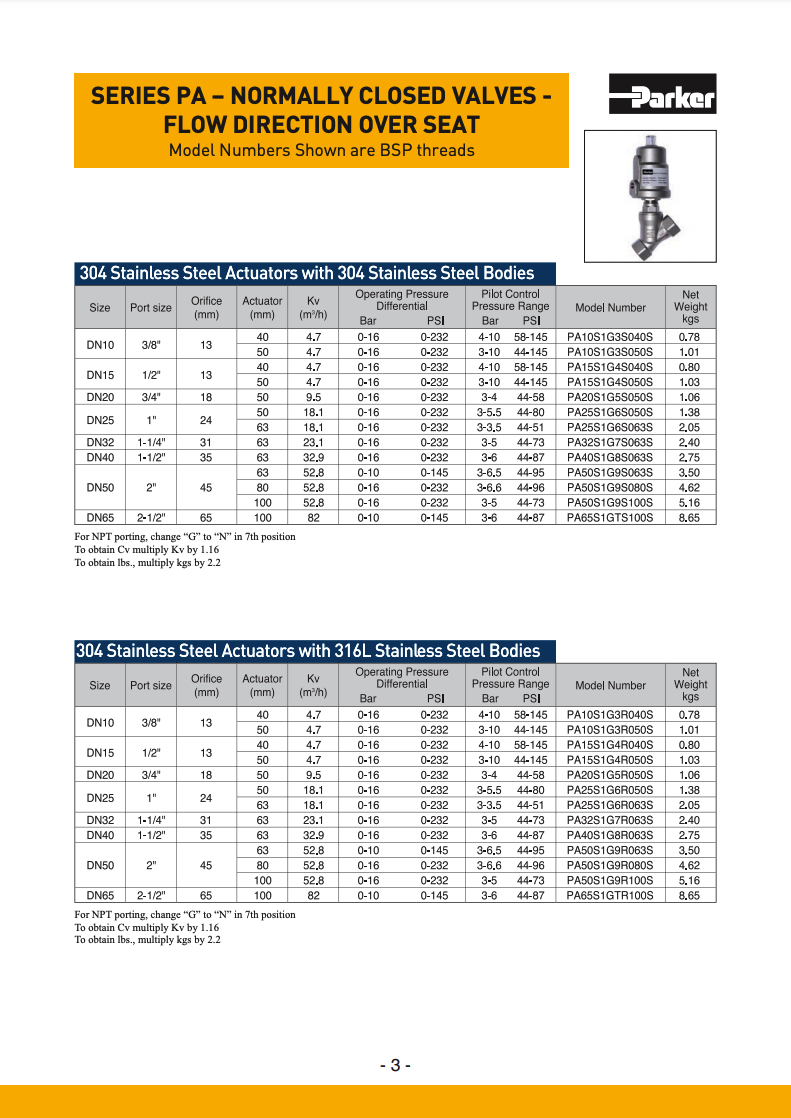

Differential Pressure See Specification Charts
Pilot Pressure 3 Bar to 10 Bar. 43.5 PSI to 145 PSI
Actuator Material 304 SS, or Aluminum
Maximum Fluid Temp -10°C to 180°C, 14°F to 356°F
